The BNR ST-770 turbocharger upgrade is intended for cars with auxiliary fuel systems and built bottom end! This turbo is good for up to around 580-600 WHP (more power is possible with a more efficient cylinder head). This upgrade will spool similarly to the ST71 but nets around 100 more peak HP when maxed out. The 770 has a German made ceramic dual ball bearing system that is reliable under extreme conditions! We also include a .038" restricted banjo bolt to eliminate oil flooding issues that journal bearings sometimes have when the engine isn't ventilated properly.
If you currently have a BNR turbo, we can sell you just the turbocharger for a discounted rate. Please contact us by phone if you request this option!
Fitment of the BNR-770 may need minor clearance on the axle mount and will need a intake coupler to adapt to your intake system. Â Unit pictured has an inlet extension which will be removed when we start shipping out units!
Â
This is what you get when you purchase the ST-770!

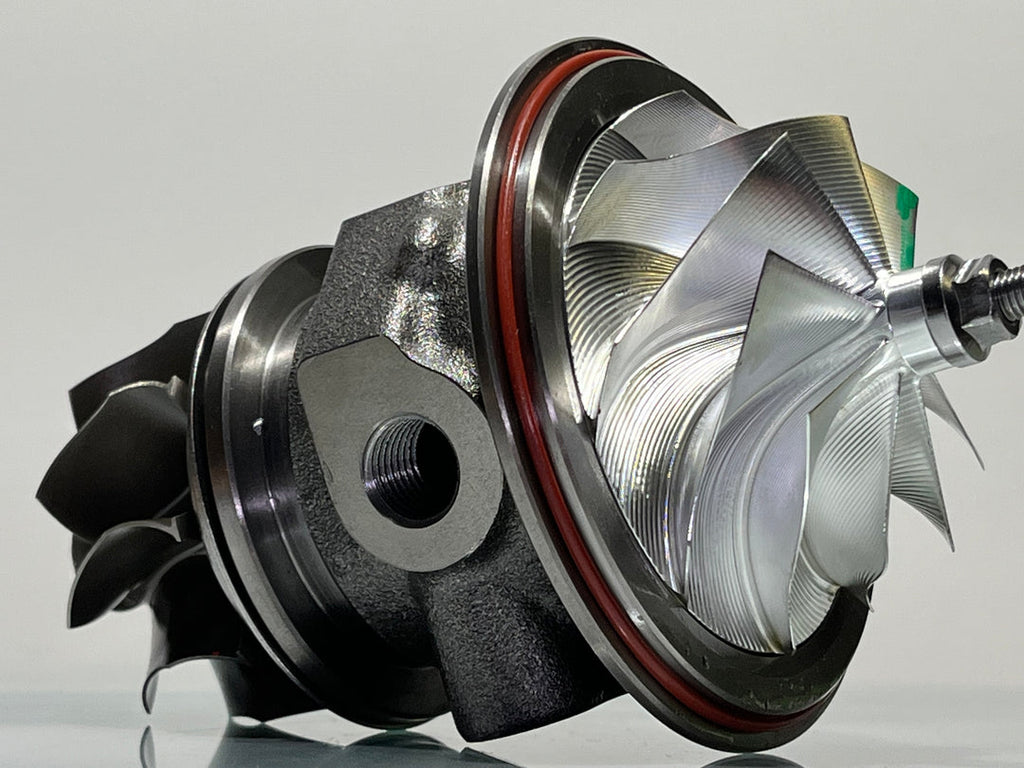

- BNR g30-770 Ball bearing Center Housing Rotating Assembly (VSR balanced)
- BNR T04B 3.5" inlet with T51R mod/2" outlet (.70 a/r) BNR .82 a/r internal wastegate turbine housing
- 32mm Internal wastegate with heavy duty, stainless swing valve assembly
- Extreme internal wastegate actuator (18 psi minimum)
- BNR Cast iron turbine inlet adapter
- BNR Cast iron Turbine outlet adapter
- Multi-layer turbine inlet and outlet gaskets (for the BNR housing)

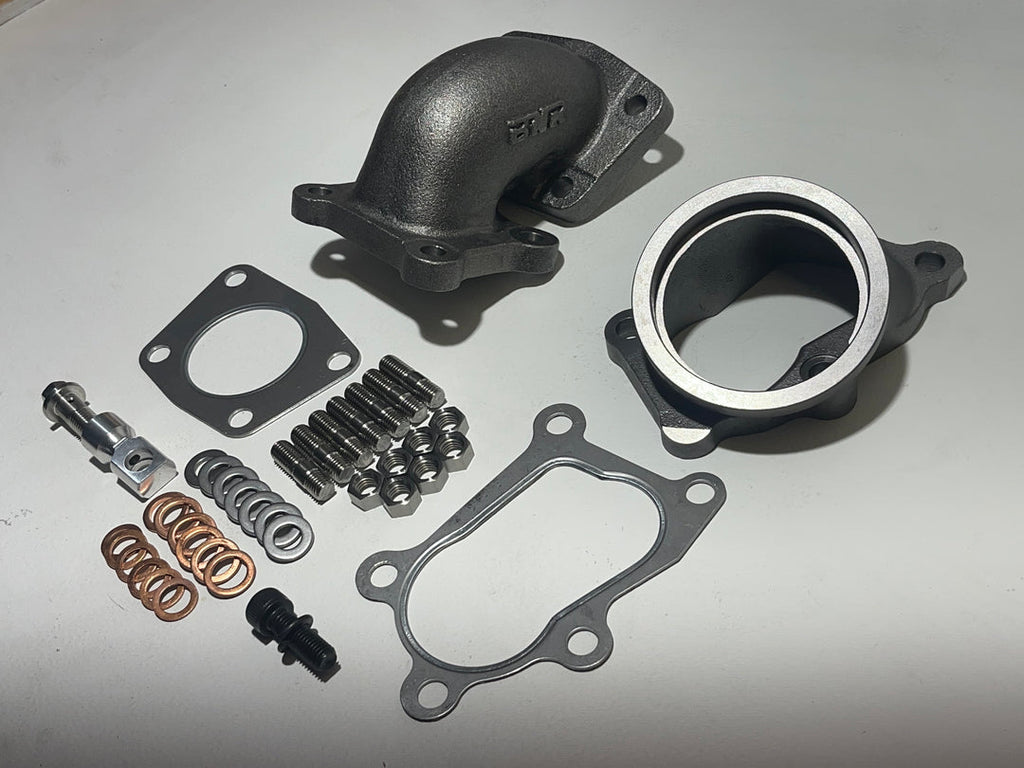

Hardware included:
- 7 M10 1.5 stainless studs
- 7 M10 1.5 Stainless nuts
- 7 M10 2mm Stainless washers
- 1 M10 1.5Â Allen head bolt (for turbine outlet adapter)
- 1 Aluminum oil inlet adapter
- 1 M12 1.5 Stainless Banjo bolt (oil inlet to adapter)
- 6 M12 Copper washers (oil inlet)
- 6 M14 Copper washers (water inlet/outlet)
- Upgraded, stainless oil outlet tube with O rings (Comes standard on units purchased after 2/15/2024)
