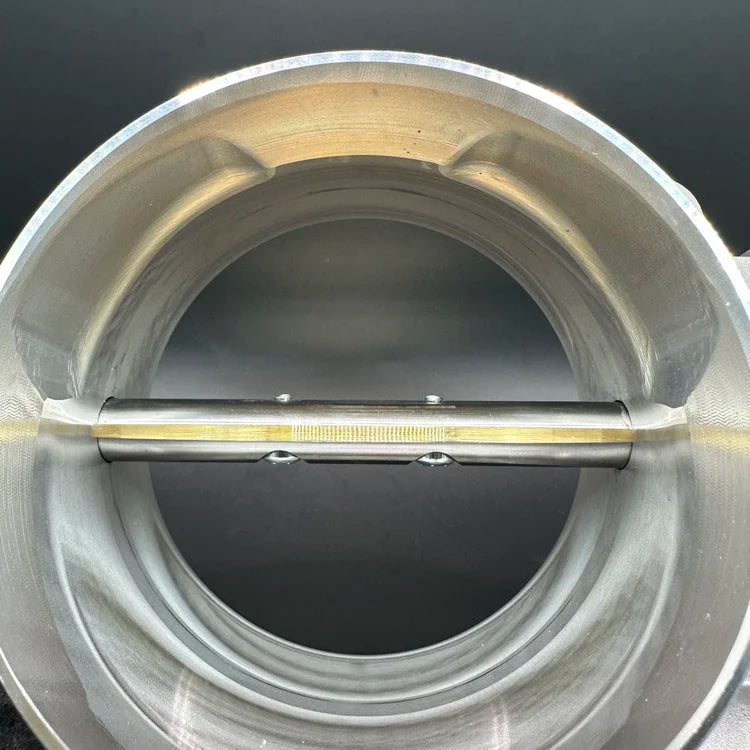

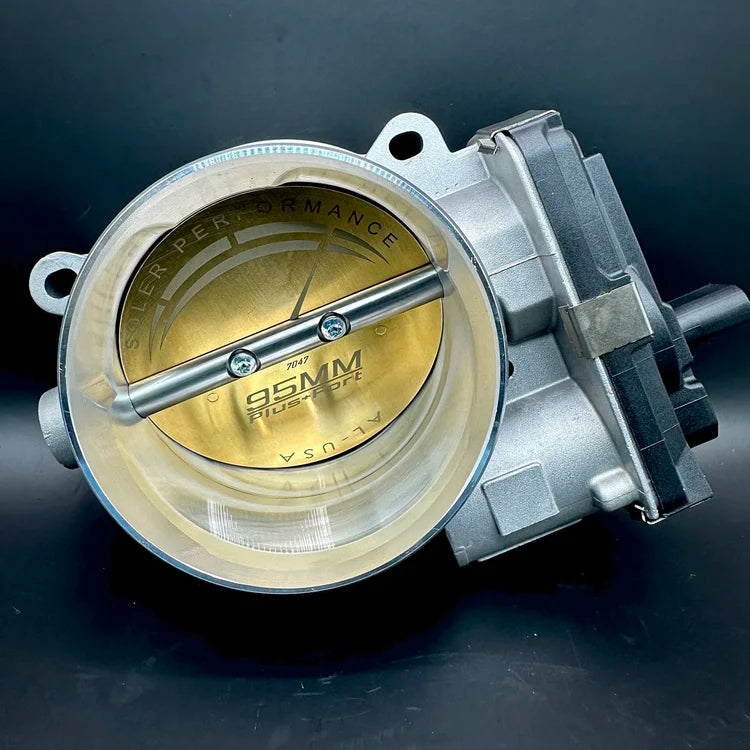

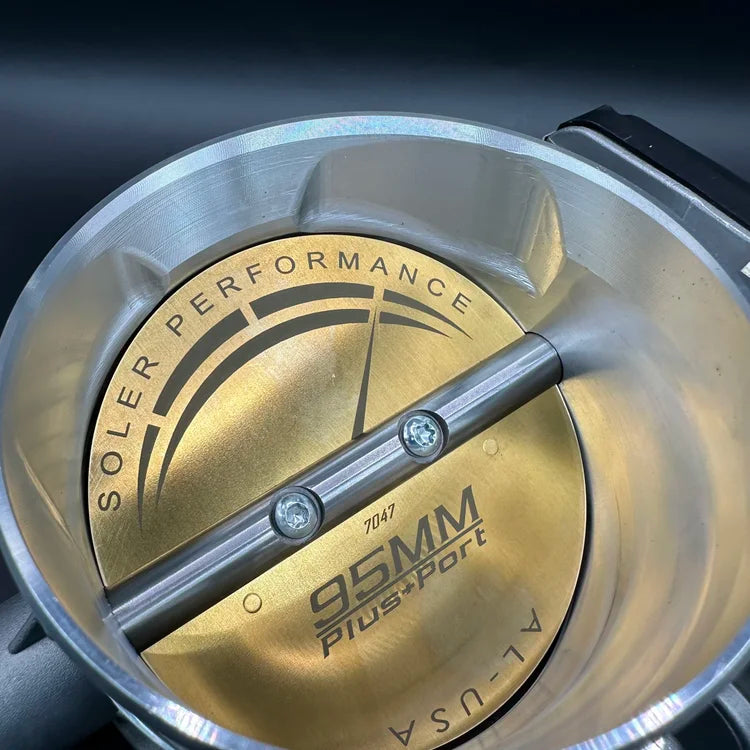

Premium Modified, Ported, and Calibrated Throttle Body
Raptor Model/Years:
RAPTOR 6.2L (2010–2014)
Requires Adapter: P/N: SE-FMCO-95-85 to fit on OEM Manifold
Note: Requires aftermarket cold air intake — does not fit on stock CAI.
Additional Fitment Information:
An aftermarket Cold Air Intake (CAI) or duct/coupler of approximately 4-inch diameter is recommended as the clamping surface is much larger at the throttle body inlet. It will not fit the stock/OEM duct on F-150.
Mounts with connector towards the passenger side.
Performance:
The classic ported throttle body, 1350 SCFM @ 20” H2O at WOT.
FEATURES:
- Optimized Active Contours with sonic flow nozzles.
- Porting Taper and Upstream Bore with Velocity Stack.
- Greater Discharge Coefficient of Plate/Blade interface.
- 16 Ra Microinch, Diamond Polished Surface Finish.
- Self-Cleaning Throat/Flow Gap.

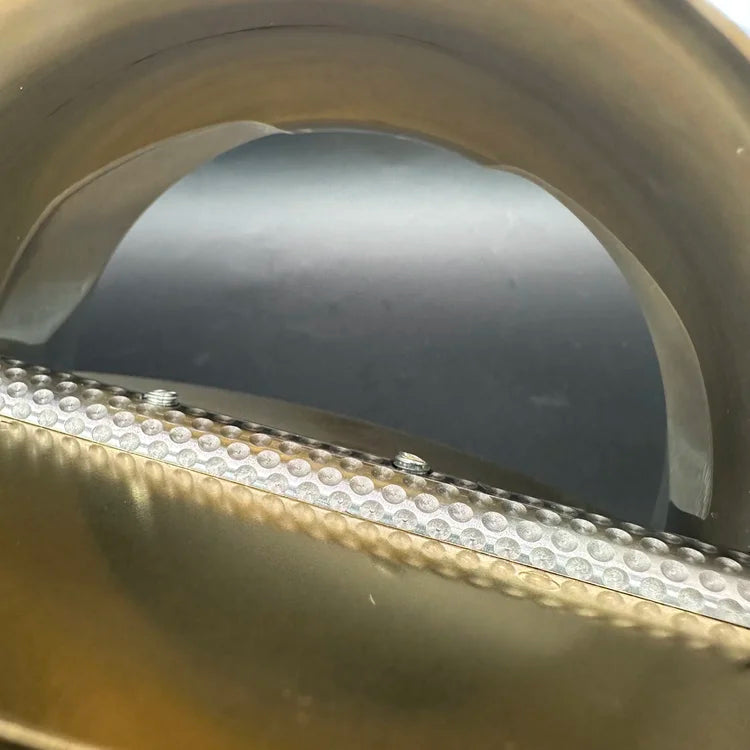

- Dimpled shaft trailing edge.
BENEFITS:
- Lower weight-to-power ratio at part throttle for a more nimble and spirited driving experience.
- Linearization and smoothing of the curve for a more predictable response and crisper shifts.
- Immediate response right off idling while keeping idling function undisturbed (No Hesitation/Stumble).
- More air/power at every single throttle position after idle — crucial for starting or expanding power gain modifications.
